Building Glass

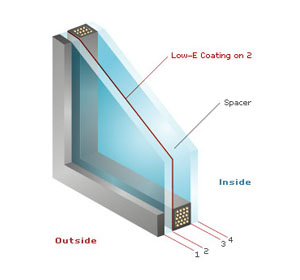

Insulating glass comprises two or more plies of glass that are separated with aluminum spacer fully filled with desiccant, and the sides are sealed with high-strength sealant. Annealed clear glass, tinted glass, solar reflective glass, Low-E glass, laminated glass, tempered glass, heat-strengthened glass and curved glass, etc. can be used to form insulating glass according to demands.

The vacuum sputtering process coats glass surfaces with several layers of different materials. Among these, a silver layer effectively reflects infrared rays while maintaining excellent thermal performance. The composition of off-line LOW-E glass fillms is:glass/metal oxides/metal/metal oxides.the glass can be horizontal heat-treated and bent tempered. Off-line low-e glass is especially suitable for applications on arc construction windows...

Usually,laminated glass is formed as sandwich of 2 sheets of glass, between which is bonded together with a tough and thermoplastic polyvinyl butyral (PVB) interlayer under heat and pressure. Laminated glass is truly the safety glass,once the glass breaks,its scraps will conglutinate with the PVB membranes firmly,which avoids harm towards people and objects owing to the fall of the glass scraps. The laminated glass has strong resistant...

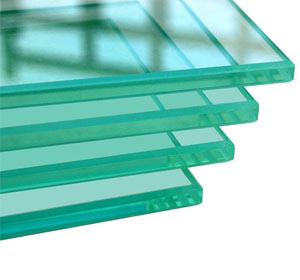

Tempered and heat-strengthened glass is obtained by heating ordinary glass to its softening point and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by times.

Off-line reflective glass is manufactured by using the magnetron sputtered vacuum deposition technique. In vacuum chambers, a homogeneous film of metal or metal compound is coated directly on float glass. By adjusting specific factors in the process different thickness of this metallic film coated will lead to various colors and high thermal performance of reflective glass products. On-line LVC reflective glass is manufactured by chemical...

silkscreen glass(Enameled Glass) is made by using ceramic frit to print graphics through a special screen onto float glass. Melt colorant into glass surface in tempering furnaces and subsequently a silkscreen glass product with qualities of non-fading and multi-pattern is manufactured.
